Specifications
- Part Number
- 200-301-00
- Design Load
- 2,000 lb. (907 kg)
- Ultimate Load
- 7,500 lb. (3,402 kg)
- Release Capacity
- 8,750 lb. (3,969 kg)
- Unit Weight
- 5.3 lb. (2.4 kg)
- Typical Overhaul
- 5 years/1,000 hours
MD500 Series

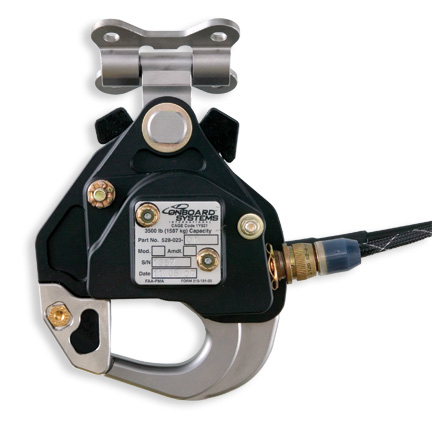

Cargo Hook Kit with TALON LC Hydraulic Hook & Onboard Weighing System
Product Number: 200-301-00
Call to confirm availability
Onboard’s reliable, low maintenance cargo hook kits for the MD500 can be installed on new aircraft or used to upgrade older equipment with all the latest safety innovations and design improvements. Onboard's cargo hook kits are OEM approved and are also a factory option for new MD500 series aircraft. They include a TALON cargo hook and hydraulic release cable. If your helicopter has not been previously equipped with a hook, a hook mount point is also available, as well as an optional Onboard Weighing System.
View Manuals, Certifications, and Hardware NotesBenefits
- Easy Field Installation:Available in easy-to-install kits for new installation or replacement of existing hook equipment.
- Easy Maintenance & Overhaul:Onboard cargo hooks can be overhauled in the field, at our factory, or by a qualified repair facility using simple hand tools. Quick parts availability minimizes downtime!
- Release Safety:Onboard cargo hooks are designed to release 2.5 times rated load. In an emergency situation, such as a longline snag, Onboard hooks give pilots a significant margin of safety in which to release the cargo load.
- Standard Time Between Overhauls:Standard time between overhauls is five years or 1,000 operating hours for all TALON hooks.
- Sleek, Low-Profile System Add-on:Our pin load cell weighing system mounts to one side of the hook by replacing the connecting bolt, rather than attaching as a separate link above the hook. Increases ground clearance by eliminating extra linkage, while still allowing the pilot to know the exact weight of the load.
- Cargo Hook Attach Point:Available for aircraft not previously equipped with a hook.
